DeatschWerks

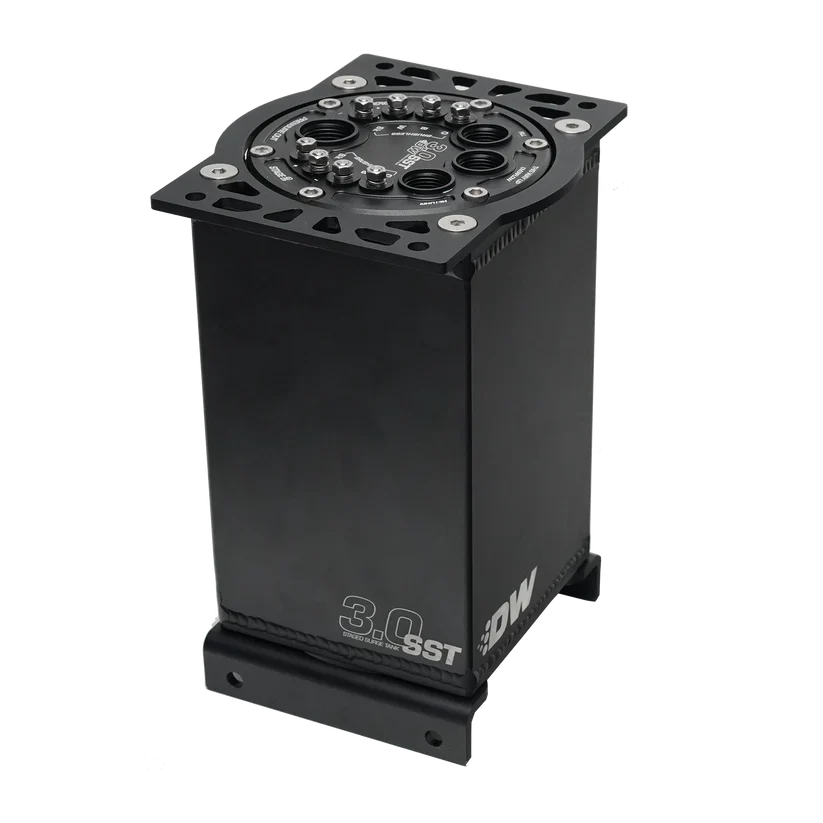

Deatschwerks 3.0L Surge Tank
Deatschwerks 3.0L Surge Tank
Regular price
$899.99 AUD
Regular price
Sale price
$899.99 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
OVERVIEW
The 3L Surge Tank is engineered to provide massive amounts of fuel flow, reliably and consistently for high performance applications. The 3L Surge Tank includes the functionality of traditional surge tanks, but with increased installation flexibility through an innovative mounting and fuel line connection design. With a merged single point outlet, single or dual, brushed or brushless pump configurations can be installed inside the tank, supporting 200hp to 2500hp
DATA INFORMATION
| Weight (Without Pumps) | 4.56 lb (2.07 kg) |
|---|---|
| Material | Anodized aluminium |
| Design | Modular, supports one or two in-tank pumps |
| Pump OD Fitments | 39 mm or 46 mm |
| Connector Terminals | M5 stud × 4 |
| Pump Outlet Fitting | -10 AN O-ring boss |
| Return / Inlet Fittings | -8 AN O-ring boss × 5 |
| Maximum Horsepower | Up to 2500 HP (DW810 × 2) |
| Compatible Pumps | DW200, DW300, DW550, DW810 |

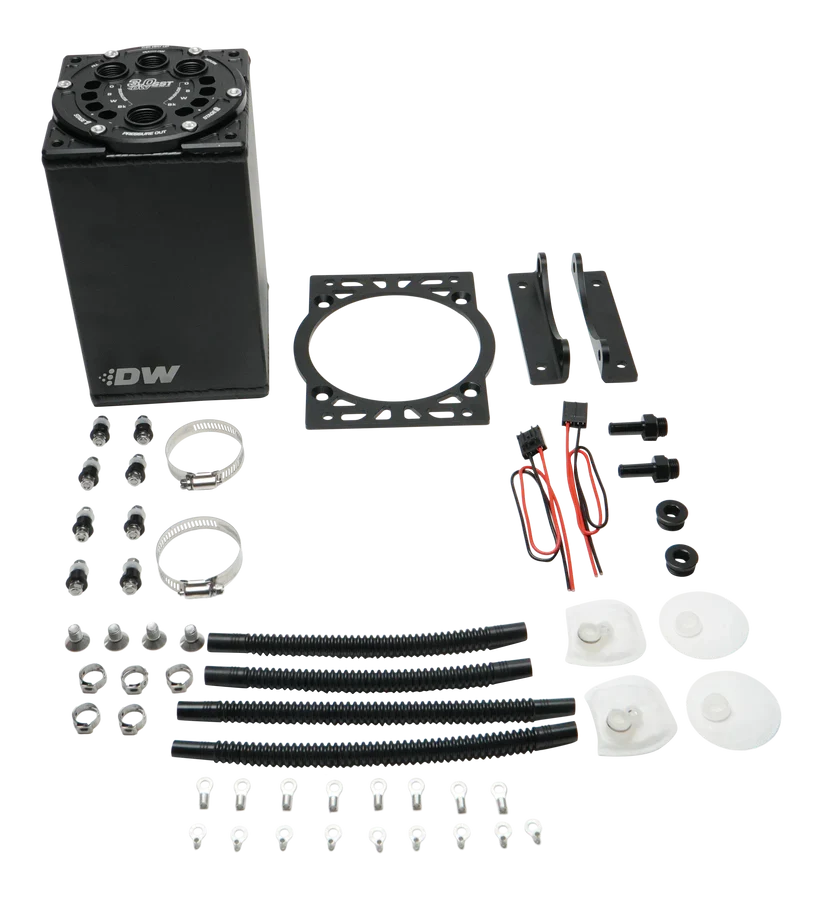

| Pump Supply Options | Sold with no pumps or supplied with DW300, DW420, DW550, or DW810 pumps |
TECHNICAL RESOURCES
Tech Data Sheet: 3L Surge Tank
