OVERVIEW

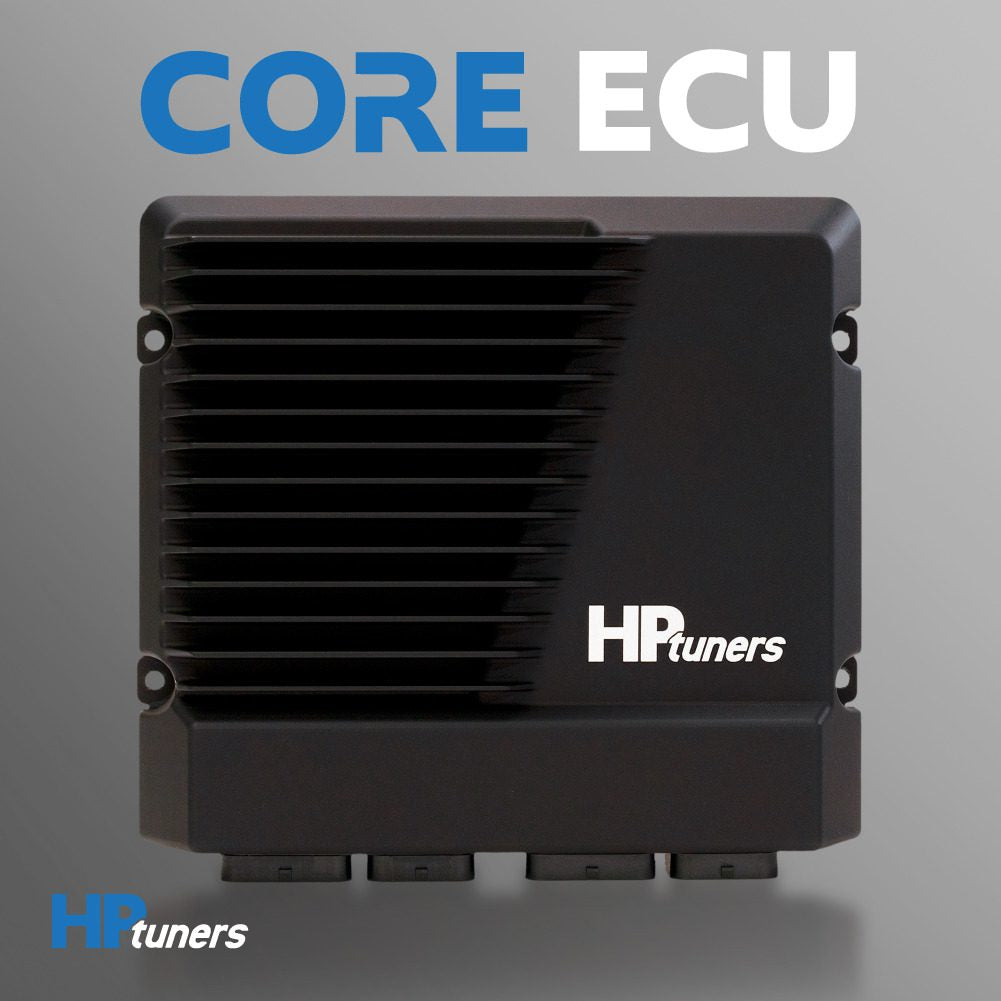

Take complete control of your engine with HP Tuners’ first standalone ECU, the CORE ECU. Engineered for performance enthusiasts and professionals alike, CORE ECU offers advanced tuning features like real-time adjustments, 16 injector support, and full data logging.

Whether you’re building a high-performance drag-car, road racer, drift car or resto-mod, CORE ECU is built to deliver precision, power, and reliability.

DETAILS

• Supports up to 16 injectors and 8 coil packs
• Sequential fuel injection support
• Optional flex fuel integration
• Dual throttle body capability
• Built-in dual wideband controller for accurate air-fuel ratio monitoring
• Real-time tuning support with new VCM Live Software
• Data logging up to 150 channels at 1 kHz
• Advanced boost, nitrous, and launch control
• CAN bus support for seamless communication with external devices
• Motorsports-grade performance

ADDITIONAL INFORMATION

Specifications

• IP66 Rated
• Configurable CAN
• (3) Separate CAN Channels
• (2) Traditional CAN
• (1) HPTNet
• PC Connection via Ethernet
• Logging Memory – 2 GB
• Laptop Datalogging via VCM Live
• On-board Data Logging – up to 150 channels at 1Khz
• On-board Wideband – 2 Built-in Channels

Inputs

• User Defined Capabilities
• Digital Inputs
• Analog Inputs
• Temperature Inputs
• Configure additional inputs such as analog inputs, switches, and lambda feedback via CAN Bus based
• Lambda Controllers

Outputs

• Low-Side Injector Control
• Ignition
• User Configurable
• Digital Outputs
• Low-Side Output
• High-Side Output
• Half-Bridge Output

VEHICLE APPLICATION

CORE ECU is designed for all levels of LS swaps and high-performance motorsports builds. It currently supports Gen 3 and Gen 4 LS engines with a 24x crank and 1x cam trigger along with 58x crank and 4x cam triggers.

Examples of Supported Gen 3 and Gen 4 LS Engines:

• LS1
• LS6
• Early LS2
• LS3
• LS7
• LS9
• LSA
• LSX
