Overview

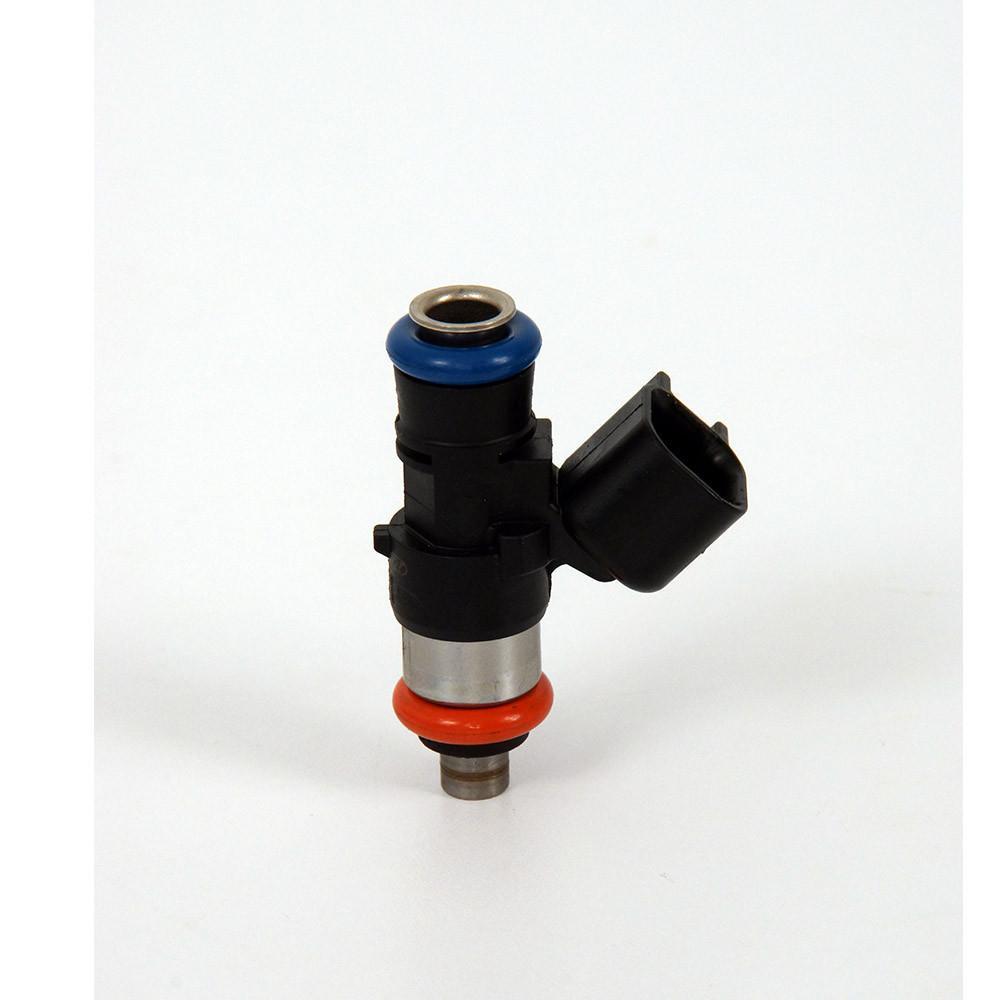

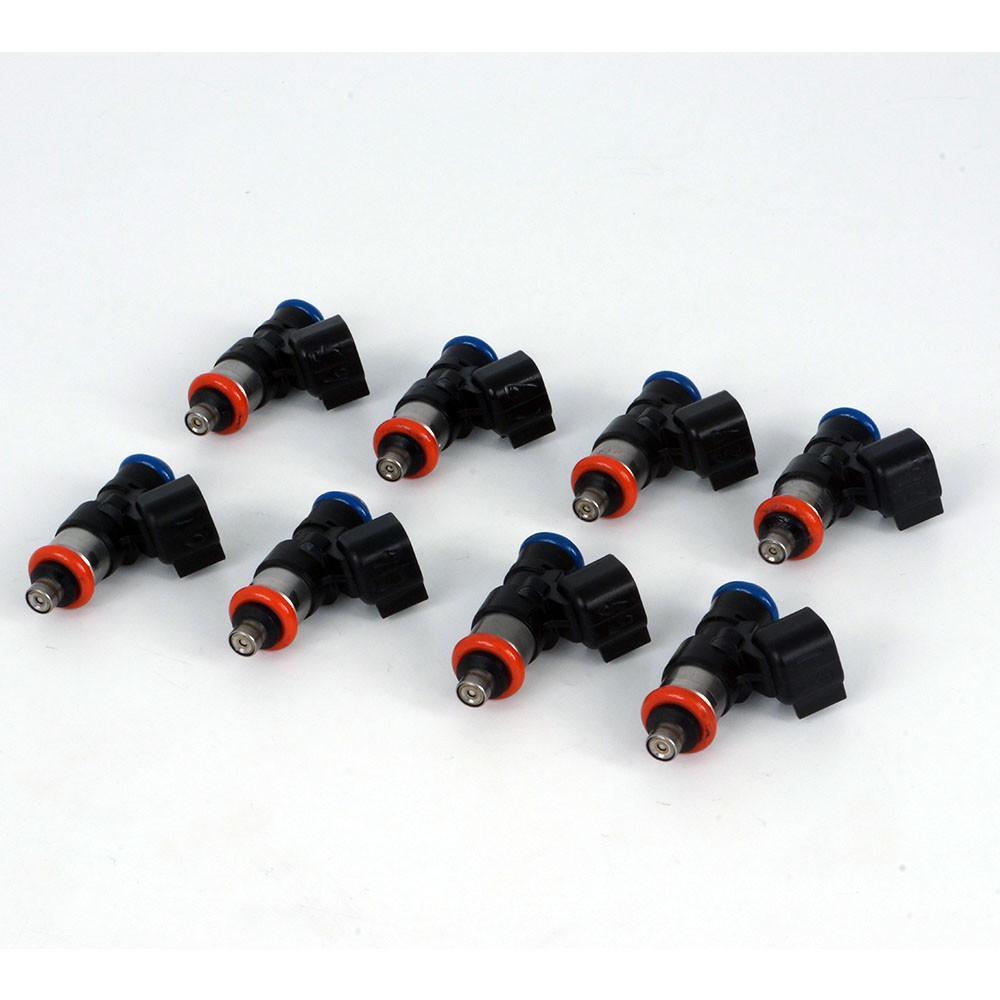

DW high flow fuel injectors are only offered in balanced sets processed through our multi-point dynamic flow testing system.

This system replicates the dynamic frequencies and pulse widths your injectors experience in your high performance engine to create a set of injectors balanced to within 2% flow variation across the low, transitional, and linear ranges of pulse widths.

Data Information

DW knows that proper data is required for proper tuning. All DW injectors are fully characterized in-house via SAE J1832 standards.

Injector data is available in General Characterization Summaries and Application Specific formats, see below for sku specific downloads

• 90/lb/hr (SKU: DW16U-00-0090-8)
• 65/lb/h5 (SKU: DW16U-00-0065-8)

• 1200cc/min (SKU: DW16MX-22-1200-8)


Data Collection Process

Development of accurate injector data is a complex process, but there are no shortcuts to a proper calibration. The data acquisition process consists of collecting over 450 data points per injector part number. These data points cover pulse widths, pressures, and voltages that the injectors will experience once installed in your engine.

The collected data is statically analyzed, scrubbed and formatted into a General Characterization Summary. This can then be formatted into application specific formats for different makes, models, and tuning platforms.
