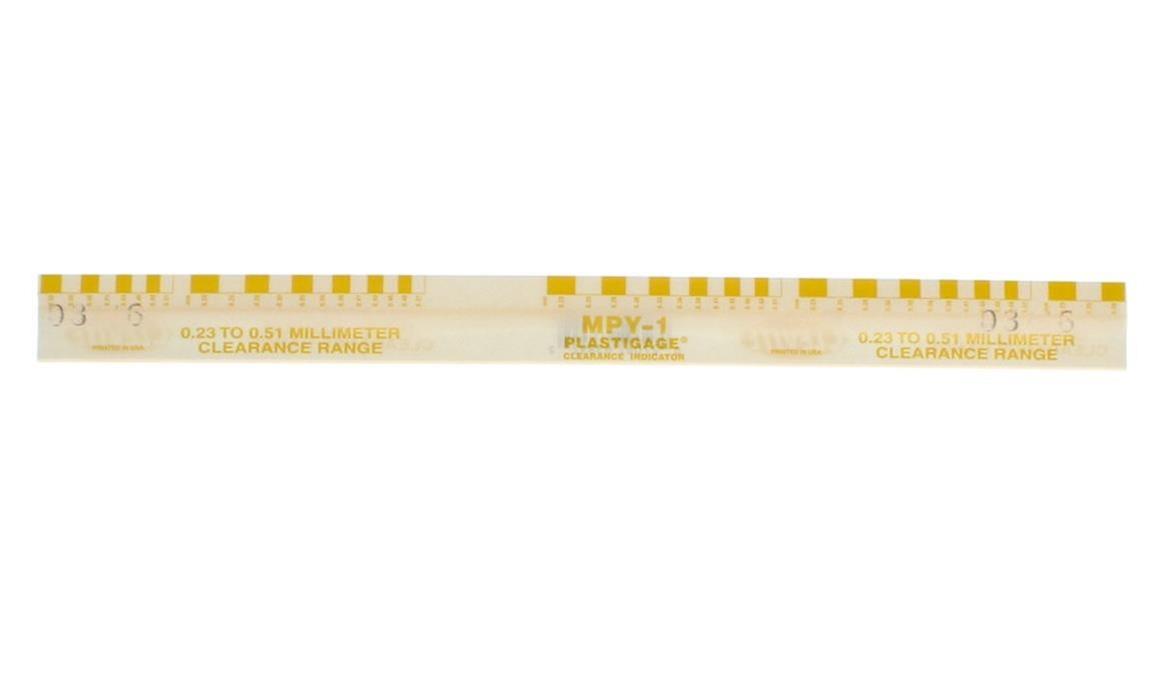

MAHLE, GREEN PLASTIGAGE .009”—.020” (.23 —.50mm)

Plastigage was designed as a final check of total vertical oil clearance during reassembly. It was not meant as a replacement for properly measuring crankshaft journals, housing bores or bearing dimensions before engine reassembly with accurate mics and gauges. To properly use Plastigage during reassembly, readings should be taken on the bearing cap half shell while the weight of the crankshaft or piston and rod assembly is supported by the other half shell
